Another winter another rip down! I did 404 miles this year but did go to a good amount of meet-ups a car show and went on an epic 50 odd mile hoon just before this. Car ran faultlessly so fusebox relocation worked well!
This time I’m going to remove any wiring I was too nervous to the first time around and shift a few mechanical bits around as it’s off to Huxley Motorsport for front tubs and some adjustments of the centre support area for my intercooler plans.
Got rid of this so far. The addition of the alarm system in UK from new is such a hack job! But I guess it’s worked for 25 years…
This time I’m going to remove any wiring I was too nervous to the first time around and shift a few mechanical bits around as it’s off to Huxley Motorsport for front tubs and some adjustments of the centre support area for my intercooler plans.
Got rid of this so far. The addition of the alarm system in UK from new is such a hack job! But I guess it’s worked for 25 years…
Last edited:
p.nicholas
living on the edge
Oh nice work.
Any plans for Japfest next year?
lug:
Any plans for Japfest next year?
lug:
Sean-B
Active member
Oh nice work.
Any plans for Japfest next year?
Thanks, I must admit I tend to stick to indoor shows now [emoji28] April will probably be too ambitious with how much time I have to put into it these days.
Will probably see the road in 2026 now.
Sean-B
Active member
Cars all ready to go to Huxley for the tubs and a few bits welding.
I’ve thinned the engine harness and sorted it so it can run inside the car and come out behind the inlet plenum instead of on the hot side of the bay. Should be nice and clean over there.
Taarks power steering pump relocation on here, new Greddy plenum with radium rail, IDX1050s and Bosch DBW throttle body loosely fitted too ready for intercooler pipework.
All the blue tape is factory holes to be welded up.
I’ve thinned the engine harness and sorted it so it can run inside the car and come out behind the inlet plenum instead of on the hot side of the bay. Should be nice and clean over there.
Taarks power steering pump relocation on here, new Greddy plenum with radium rail, IDX1050s and Bosch DBW throttle body loosely fitted too ready for intercooler pipework.
All the blue tape is factory holes to be welded up.
Sean-B
Active member

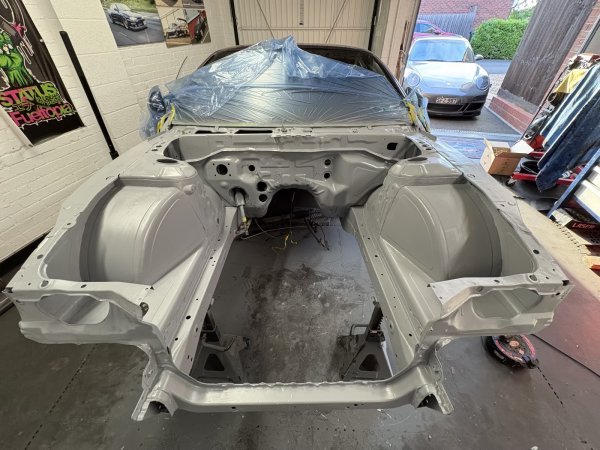

So it’s back!
Marc at Huxley Motorsport is an absolute artist. What he’s done is well beyond my expectation.
Tubs infront and behind the turret. The tubs are all welded from behind so there’s no visible welds
Passengers side firewall replaced to remove all holes. Custom braces behind the turrets. Removable slam panel.
Custom BMC (as the ones available are so ugly!)
Modified my Greddy long port plenum to remove all the conventional throttle body part to suit the Bosch DBW TB
He’s made the exhaust to join up with my Blitz Nur Spec all V banded and done me a screamer from the turbosmart wastegate.
Made all the intercooler pipes and added my turbosmart blow off valve.
To date I’ve hated every single person who’s worked on my car as they are all terrible, Marc however is a genuine car guy and it shows in his workmanship
Marc at Huxley Motorsport is an absolute artist. What he’s done is well beyond my expectation.
Tubs infront and behind the turret. The tubs are all welded from behind so there’s no visible welds
Passengers side firewall replaced to remove all holes. Custom braces behind the turrets. Removable slam panel.
Custom BMC (as the ones available are so ugly!)
Modified my Greddy long port plenum to remove all the conventional throttle body part to suit the Bosch DBW TB
He’s made the exhaust to join up with my Blitz Nur Spec all V banded and done me a screamer from the turbosmart wastegate.
Made all the intercooler pipes and added my turbosmart blow off valve.
To date I’ve hated every single person who’s worked on my car as they are all terrible, Marc however is a genuine car guy and it shows in his workmanship
p.nicholas
living on the edge
Loving this build.
Sean-B
Active member
Long time no update so I’ll do it in sections!

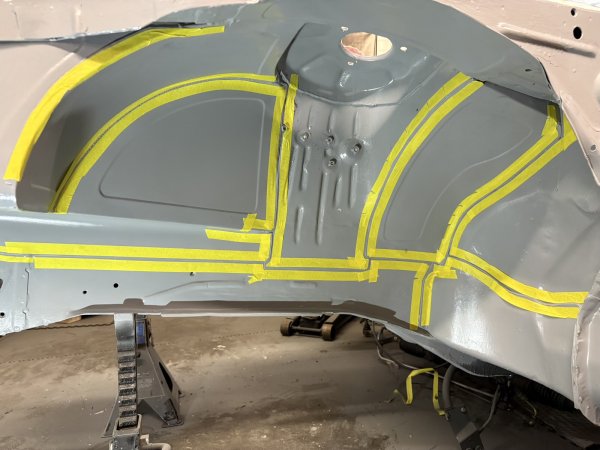

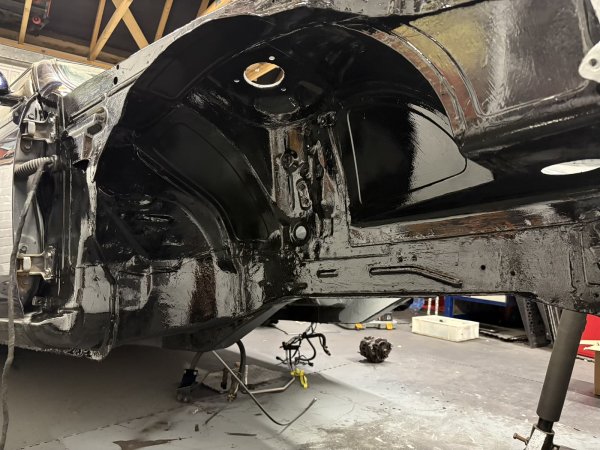

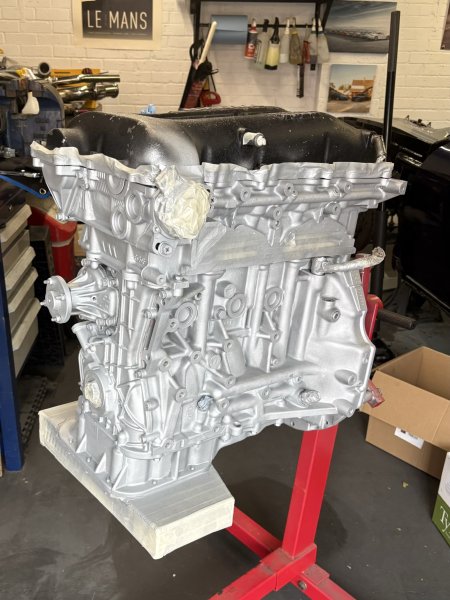

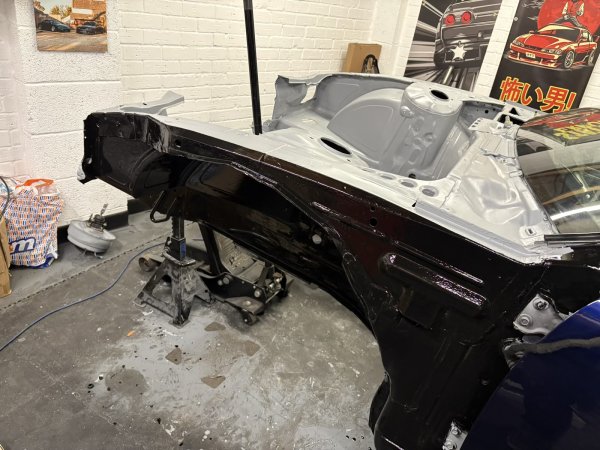

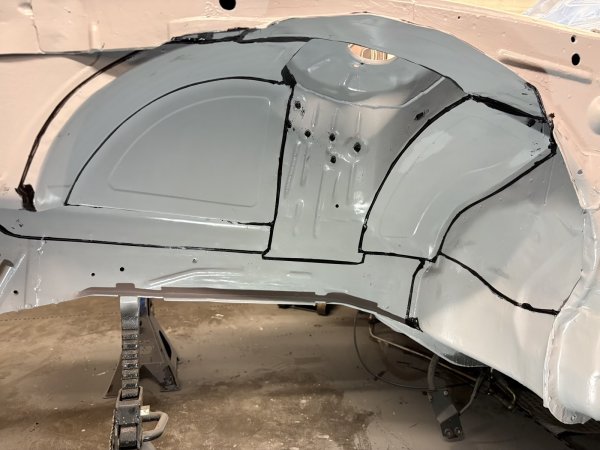

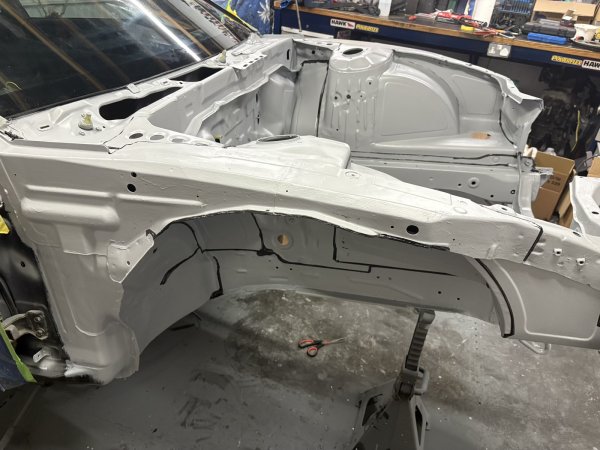

Once the car was back from Huxley I set about taking the engine out to get the chassis protected. Used the bilt hamber system with a POR15 gloss top coat in the arches.
Once the car was back from Huxley I set about taking the engine out to get the chassis protected. Used the bilt hamber system with a POR15 gloss top coat in the arches.
Attachments
Sean-B
Active member

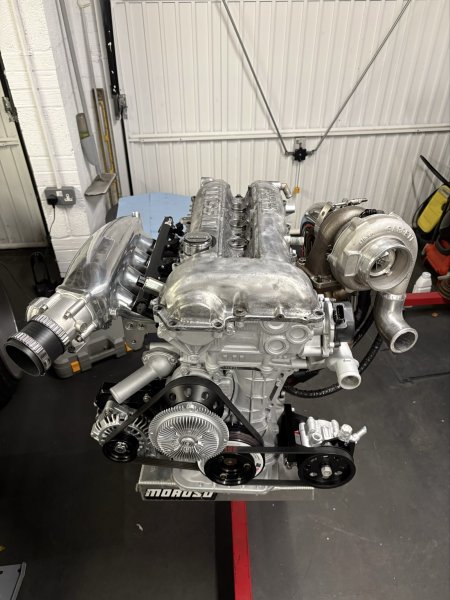

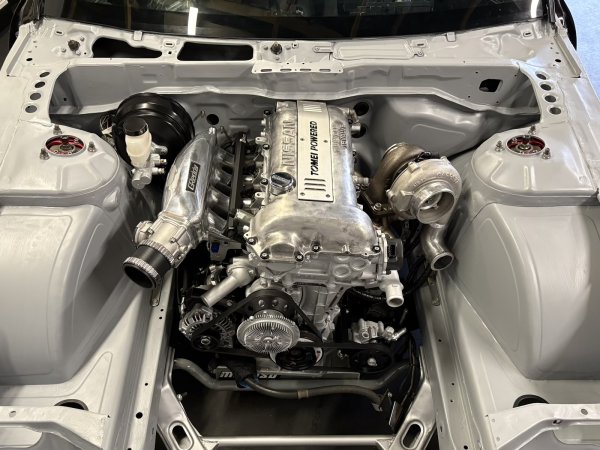

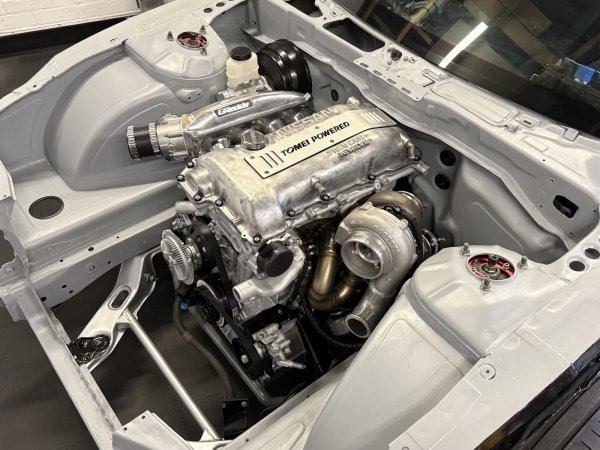

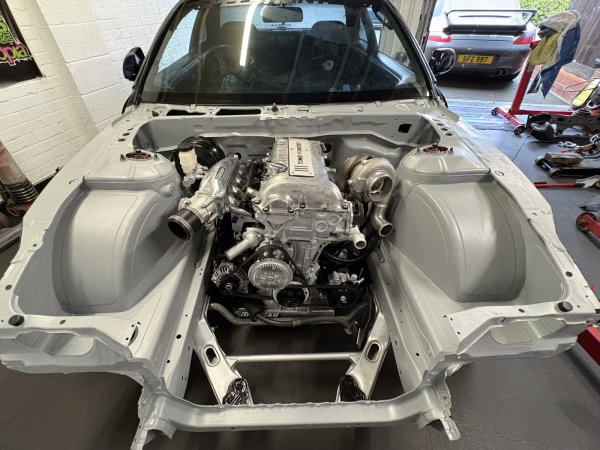

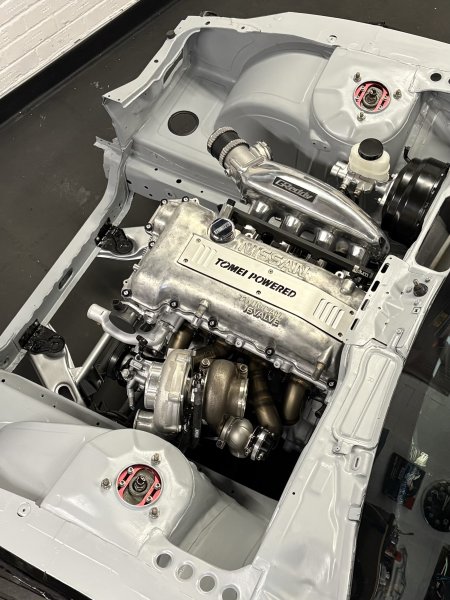

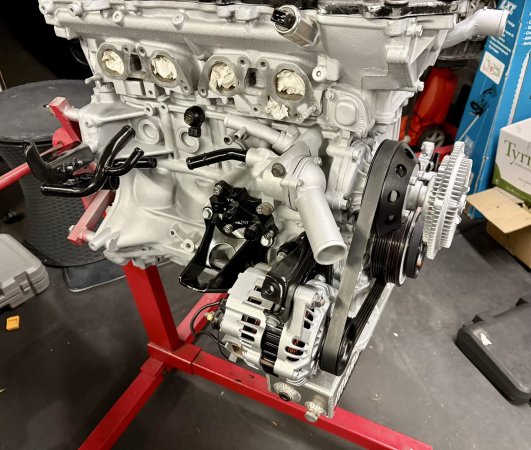

Guys, guys! Calm down. I know you’re all begging for the next instalment! Well here it is. I slammed that SR20DET so hard into that S14a it made the baby Jesus cry.

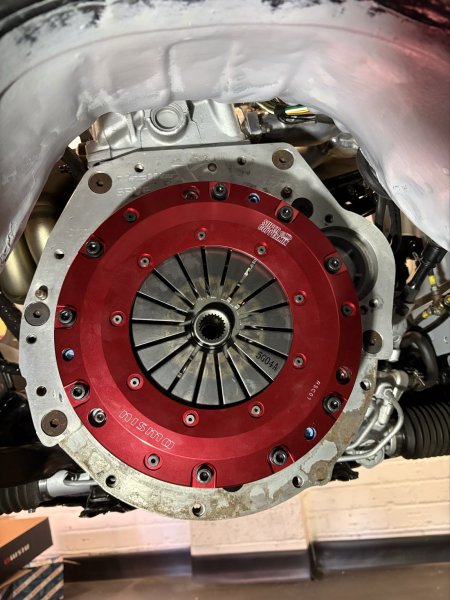

But…that wasn’t all! I’d man mathed my way all the way to a Nismo Twin Supercopper mix clutch (little spoiler it’s fucking awesome)
But…that wasn’t all! I’d man mathed my way all the way to a Nismo Twin Supercopper mix clutch (little spoiler it’s fucking awesome)
Attachments
p.nicholas
living on the edge
Super copper mix nice
p.nicholas
living on the edge
Where’s the pics?
Sean-B
Active member
Sean-B
Active member

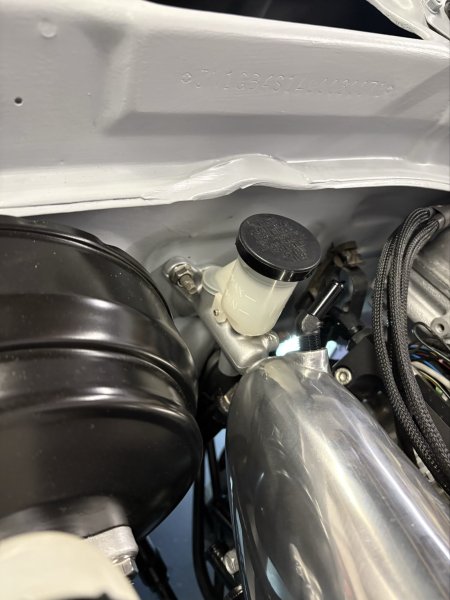

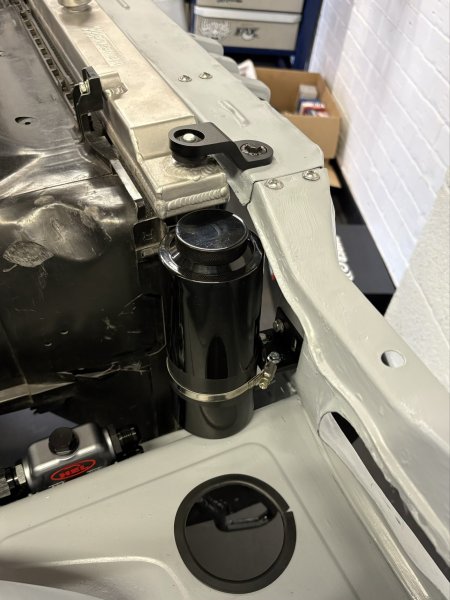

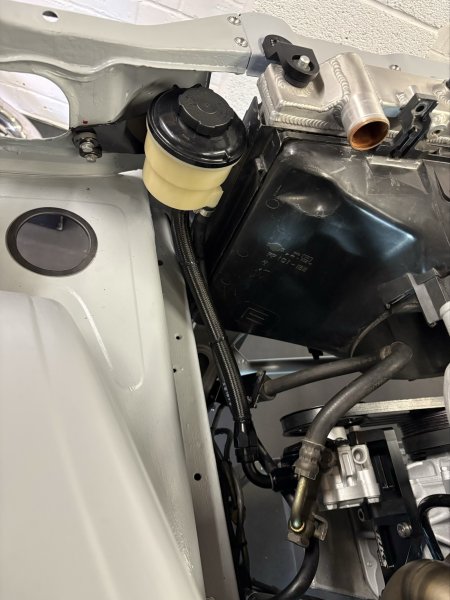

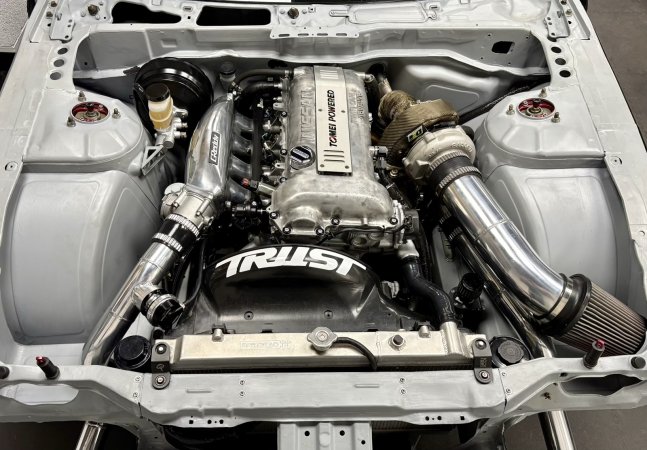

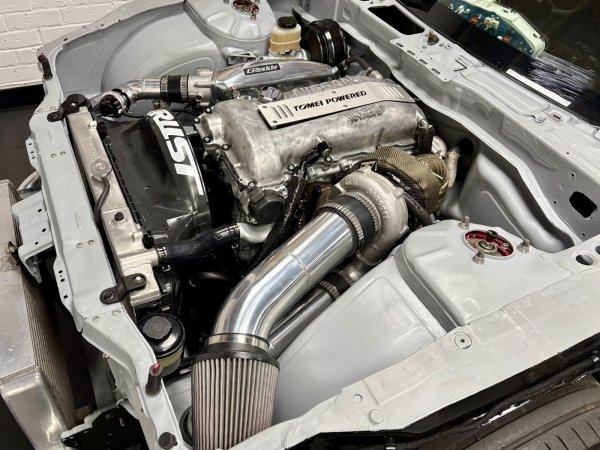

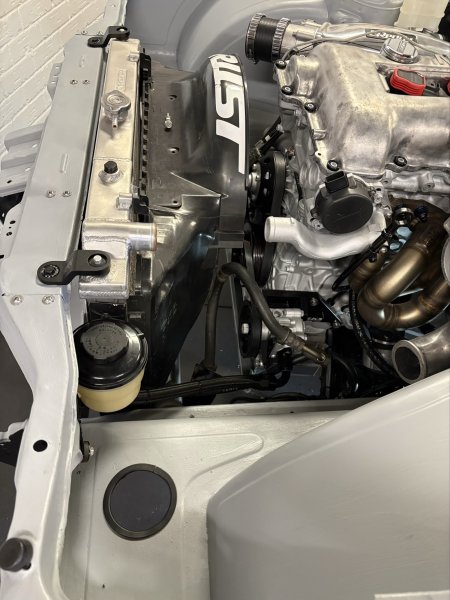

So after the above it was the home stretch. Final fit and plumb up ready for mapping!

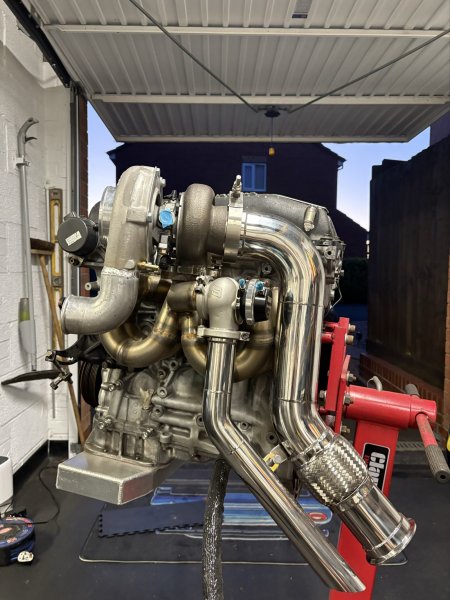

Engine Bay spec:
Mahle 86.5mm pistons
Manley Rods
ARP Head Studs and Nuts
Cosworth 87mm 1.5mm Head Gasket
Tomei 260 procams
BC racing springs and Ti retainers
Tomei Rocker Arm stoppers
ACL Rod Bearings
ACL Main Bearings
ACL Thrust washers
Genuine Nissan Oil Pump
Genuine Nissan timing kit (chain, crank sprocket, all guides etc.)
Genuine Nissan Stem seals & valve guides
Genuine Nissan Gaskets throughout
Moroso Baffled Sump
All machined and built at Fusion Motorsport
ATI Super Damper

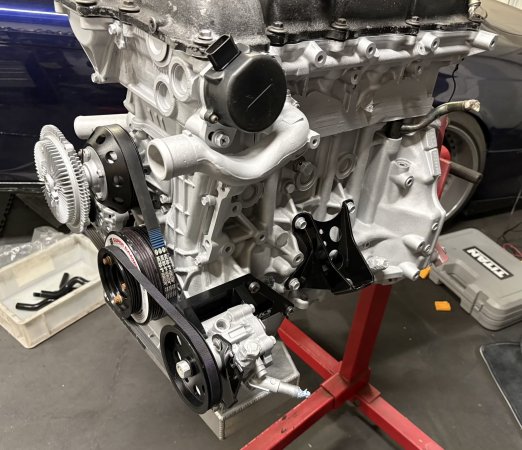

TAARKS V2 Power Steering Relocation
TAARKS Oil Filter Relocation
HEL thermostatic oil cooler block
OBP Performance 16 Row Oil Cooler

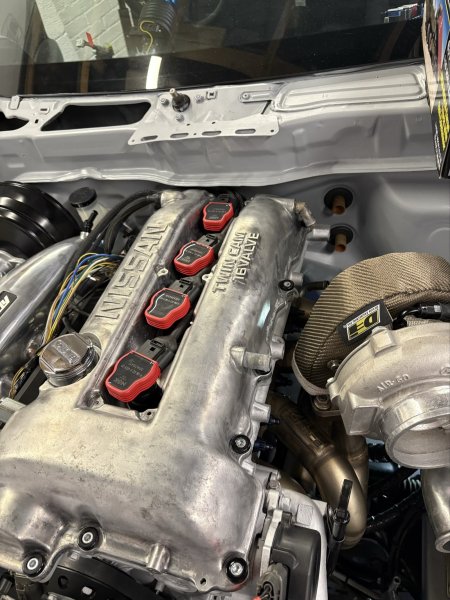

Audi R8 coil packs + loom adaptor
Greddy Long Port Inlet Manifold

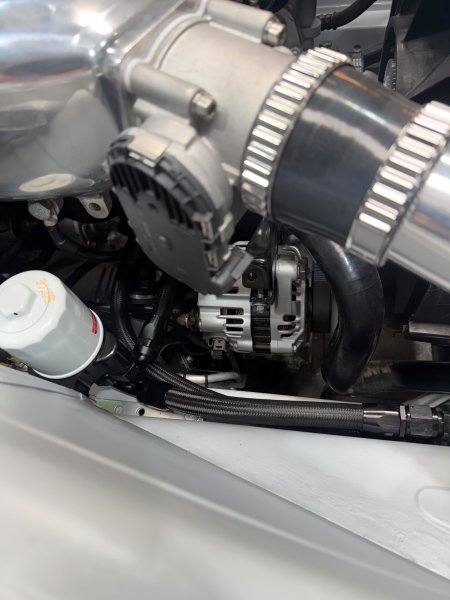

Bosch 60mm DBW Throttle Body
Radium Top Feed Fuel Rail
Radium Direct Mount FPR
Radium Inline Fuel filter with AN fuel lines
Radium Catch Can
ID1050X injectors

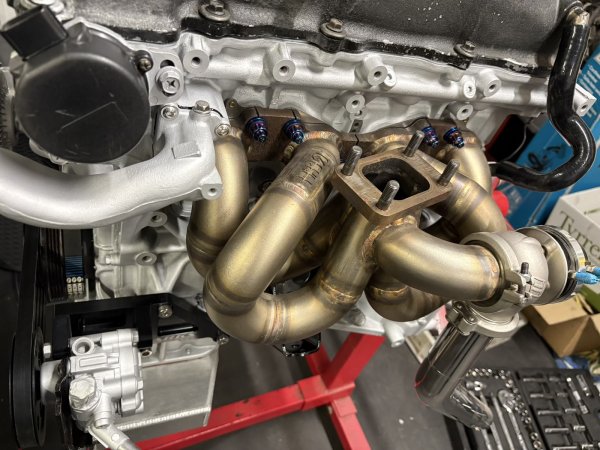

Full Race Top Mount T3 Manifold
Garrett GTX3071R 0.63AR

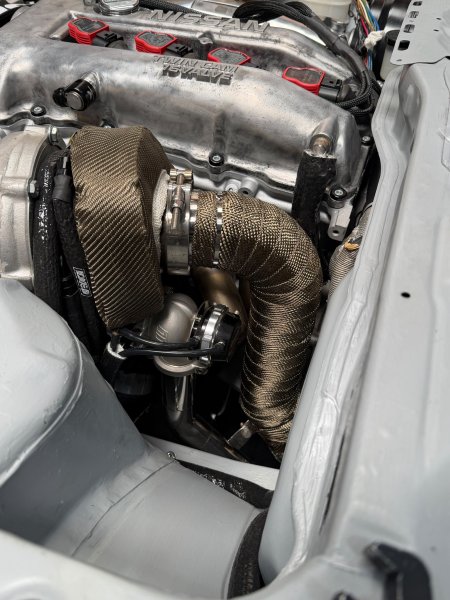

DEI Turbo blanket
Turbosmart 45mm HyperGate
Turbosmart Gen V Raceport BOV
4” K&N Air Filter
Greddy Intercooler
Haltech Elite 1500 ECU
Haltech Wideband Lambda
Haltech Oil Pressure / Temp Sensor
Haltech Fuel Pressu
Engine Bay spec:
Mahle 86.5mm pistons
Manley Rods
ARP Head Studs and Nuts
Cosworth 87mm 1.5mm Head Gasket
Tomei 260 procams
BC racing springs and Ti retainers
Tomei Rocker Arm stoppers
ACL Rod Bearings
ACL Main Bearings
ACL Thrust washers
Genuine Nissan Oil Pump
Genuine Nissan timing kit (chain, crank sprocket, all guides etc.)
Genuine Nissan Stem seals & valve guides
Genuine Nissan Gaskets throughout
Moroso Baffled Sump
All machined and built at Fusion Motorsport
ATI Super Damper
TAARKS V2 Power Steering Relocation
TAARKS Oil Filter Relocation
HEL thermostatic oil cooler block
OBP Performance 16 Row Oil Cooler
Audi R8 coil packs + loom adaptor
Greddy Long Port Inlet Manifold
Bosch 60mm DBW Throttle Body
Radium Top Feed Fuel Rail
Radium Direct Mount FPR
Radium Inline Fuel filter with AN fuel lines
Radium Catch Can
ID1050X injectors
Full Race Top Mount T3 Manifold
Garrett GTX3071R 0.63AR
DEI Turbo blanket
Turbosmart 45mm HyperGate
Turbosmart Gen V Raceport BOV
4” K&N Air Filter
Greddy Intercooler
Haltech Elite 1500 ECU
Haltech Wideband Lambda
Haltech Oil Pressure / Temp Sensor
Haltech Fuel Pressu
Attachments
Last edited:
p.nicholas
living on the edge
I’ll give you £50 for it lol
Honestly this is an awesome build m8 keep it going
Honestly this is an awesome build m8 keep it going
