JZS14 Silvia

some updates as of late, nothing but spending and no driving lately but that's part of it!

view of the 3 inch exhaust clearance before turbo swap just to remind myself how stupid a 4 inch downpipe is again!
300 by Jonny McIntosh, on Flickr

old setup removed
301 by Jonny McIntosh, on Flickr

trying on the new manifold

302 by Jonny McIntosh, on Flickr

303 by Jonny McIntosh, on Flickr

304 by Jonny McIntosh, on Flickr

305 by Jonny McIntosh, on Flickr

i'll be honest, it's a lovely manifold and it fits the head etc fine without any work required, but, the wastegate position is pressed into my brake pipes, this manifold i understand has the port positioning for max priority/flow into the wg for boost management but it's not ideal and it was a complete nightmare to fit the v band clamp on the gate once it was in place against the spring seat pressure

306 by Jonny McIntosh, on Flickr

made up a little boost pipe adjustment out of spare pipes (need a clean and a polish)
307 by Jonny McIntosh, on Flickr

sorted out an oil return, a 45* an10 was perfect for this job
all hose was heat protected

308 by Jonny McIntosh, on Flickr

now the start of the nightmare, the exhaust fab work fitting a 4 inch in, the old 6 boost manifold i had in my last forged engine setup was alot easier as the *6 runner was tighter and positioned in a different angle/place, this time the 4 inch 90* was basically touching either the *6 leg of the manifold or the base of the clutch master cylinder

309 by Jonny McIntosh, on Flickr

excuse the welds, these were only stainless mig spot/tac welded before being taken out to the tig welders place to get done properly

310 by Jonny McIntosh, on Flickr

I made some pie cuts out of 4 inch pipe

311 by Jonny McIntosh, on Flickr


again excuse the welds
312 by Jonny McIntosh, on Flickr

properly tig welded now by my mate josh at garage hobo, I dropped the exhaust pipes off at his place tack welded together
313 by Jonny McIntosh, on Flickr


now onto positioning the flexi and working downwards

314 by Jonny McIntosh, on Flickr

315 by Jonny McIntosh, on Flickr


316 by Jonny McIntosh, on Flickr

wastegate exit

317 by Jonny McIntosh, on Flickr

original oval floor system modified at the front to accept 4 inch v band

318 by Jonny McIntosh, on Flickr

all coolant pipes and oil pipework made up in AN lines and heat wrapped/protected, intake pipe modified to take the same K&N intake filter, sadly it isn't a 4 inch intake which i always thought looked better on a big single turbo but that's modern turbos now!

319 by Jonny McIntosh, on Flickr

how it looks:

320 by Jonny McIntosh, on Flickr

after a few hundred miles, my gk tech engine mounts looked like this:

321 by Jonny McIntosh, on Flickr

sadly their warranty didn't cover it as they are sr20 mounts not 1jz, however i do understand that they can't warrant a product if it's incorrectly used


so i spoke to called locknloaded engineering who also has a 1jz s14 and he made me up some 63mm tall solid mounts (around 65-66mm tall once a piece of hose is squashed in)

322 by Jonny McIntosh, on Flickr



335 by Jonny McIntosh, on Flickr


then it was back to basics, i had to sort an oil leak that had been annoying me since fitting the 1jz vvti engine

323 by Jonny McIntosh, on Flickr

sorted out a new cam seal on the exh side

while i had it in bits, i decided to also fit a new vvt pulley

324 by Jonny McIntosh, on Flickr

primed before fitting

325 by Jonny McIntosh, on Flickr

and a new timing belt

345 by Jonny McIntosh, on Flickr

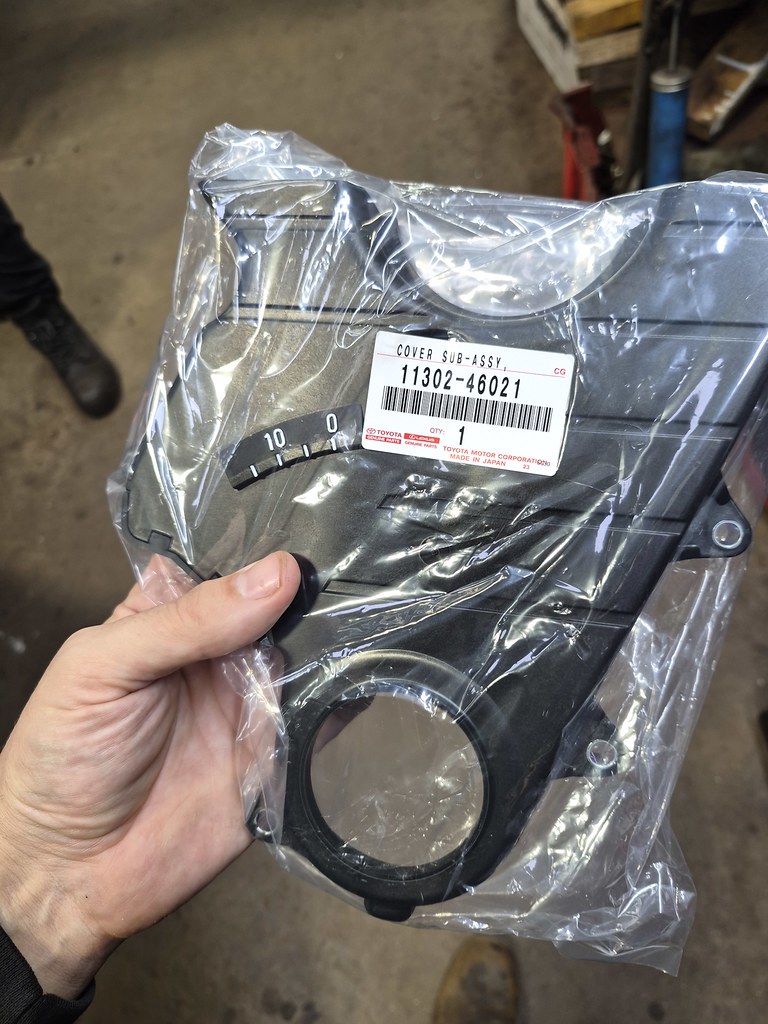

and a new timing cover

327 by Jonny McIntosh, on Flickr


328 by Jonny McIntosh, on Flickr


a new koyo rad cap as my last one's seal perished, likely from it being on when welding the top water neck

344 by Jonny McIntosh, on Flickr

Last edited:
changed the oil to this:

329 by Jonny McIntosh, on Flickr


removed the oil cooler heat exchanger

330 by Jonny McIntosh, on Flickr

also put the sandwich plate back on for gauge sensors

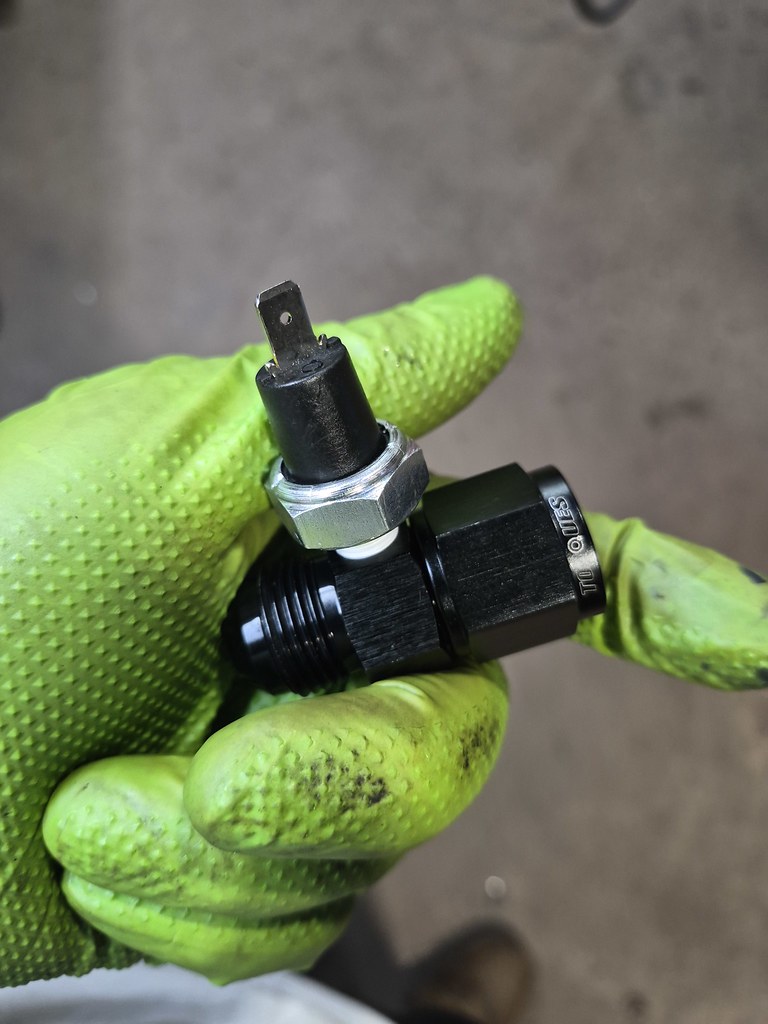

inc some of these
336 by Jonny McIntosh, on Flickr

and an oil cooler 25 row (excuse the bracket it was just for now until i make a proper one

339 by Jonny McIntosh, on Flickr

some an lines

340 by Jonny McIntosh, on Flickr

ordered a new down turn lower rad hose adapter, this massively helps clearance around the manifold and turbo oil drain!
341 by Jonny McIntosh, on Flickr

342 by Jonny McIntosh, on Flickr

343 by Jonny McIntosh, on Flickr


added a power steering cooler
337 by Jonny McIntosh, on Flickr


338 by Jonny McIntosh, on Flickr

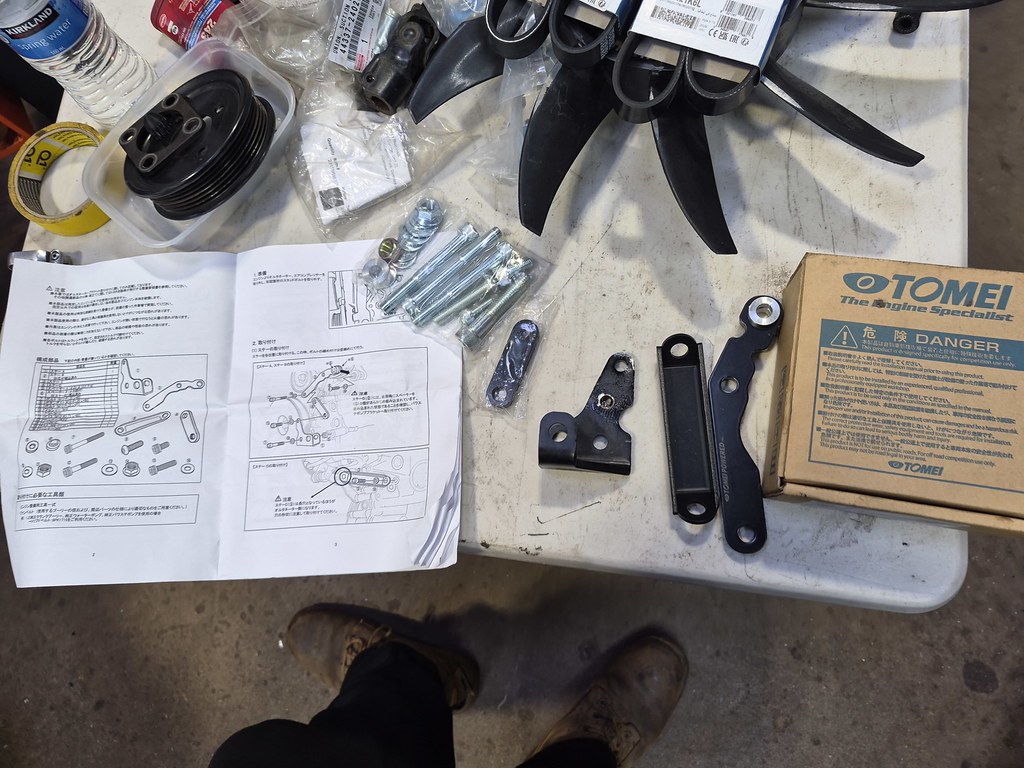

alternator relocation kit, my engine suffered the cracked alternator bracket (common jz fault)

331 by Jonny McIntosh, on Flickr

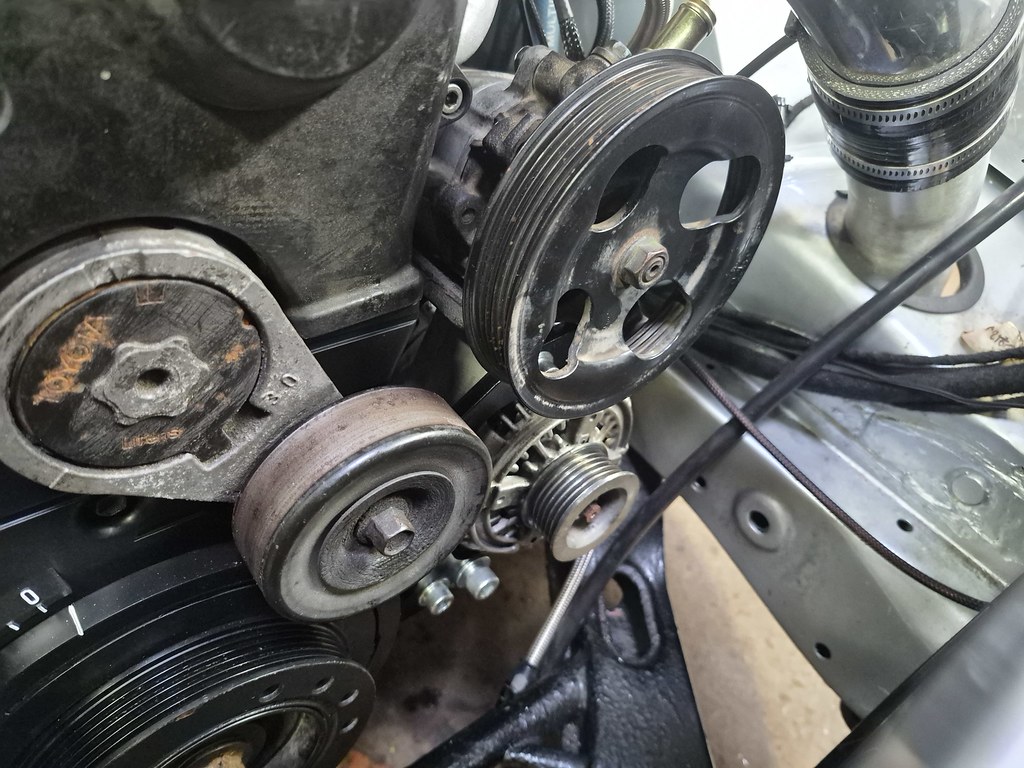

which turned into removing the 350z power steering pump and brackets as they no longer worked with the tomei kit, so i have now returned to the standard 1jz power steering pump setup

332 by Jonny McIntosh, on Flickr

333 by Jonny McIntosh, on Flickr

334 by Jonny McIntosh, on Flickr
